BMW 5-Series Touring
"BMW releases second, Touring, variation of its 5-series line, saving Grand Touring for later. As with the sedan, 5-Series Touring will get tech upgrades, including variant specific adaptive self-leveling standard rear suspension. With 1,700 liters of total cargo space, it's more specious ever. The 5-Series Touring is also capable of hauling 120 kg of more cargo, compared to the previous model. Below is the official press release by BMW:" Ed.
Like the recently launched new BMW 5 Series Sedan, the second body variant in this tradition-steeped model range also impresses with an exceptional display and operating concept, trailblazing assistance systems and stand-out advances in digital connectivity.
“The BMW 5 Series Touring was developed specifically for the European market, where it has enjoyed great success over the last 25 years. I am sure that the versatility of this new, fifth generation will prove even more popular with those customers who appreciate the 5 Series Touring’s characteristic roomy, variable loading space combined with its distinguished appearance and – of course – its BMW-typical driving dynamics,” says Dr Ian Robertson, Member of the Board of Management at BMW AG, Sales and Marketing.
The new BMW 5 Series Touring celebrates its world premiere in March 2017 at the Geneva International Motor Show. Four engines from the BMW Group’s latest generation of power units will be available to order when sales begin in June 2017, while the BMW xDrive intelligent all-wheel-drive system will be fitted in two models from day one. Additional variants with both classical rear-wheel drive and all-wheel drive will join the line-up over the course of the year.
2018 BMW 5-Series Touring
Weight reduced, agility enhanced, efficiency optimised.
The sporty driving characteristics of the new BMW 5 Series Touring are the product of new chassis technology and a commitment to reducing weight. Rear air suspension with automatic self-levelling is part of standard specification. Included on the options list, meanwhile, are Dynamic Damper Control, the Adaptive Drive system with active roll stabilisation, Integral Active Steering (now available in conjunction with xDrive) and M Sport suspension with a ten-millimetre drop in ride height.
The suspension side members and tailgate are now made from aluminium, which is also employed alongside high-strength steels in many other chassis components and the extremely torsionally-stiff body. This use of materials, together with the efficient drive-system technology already mentioned and optimised aerodynamics, results in fuel consumption and emissions 11 per cent lower than the figures recorded by the new 5 Series Touring’s predecessor.
Athletic design for a versatile sports machine.

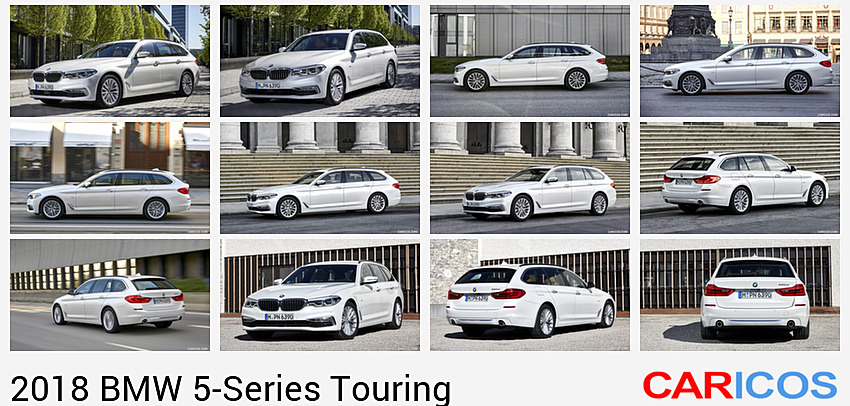

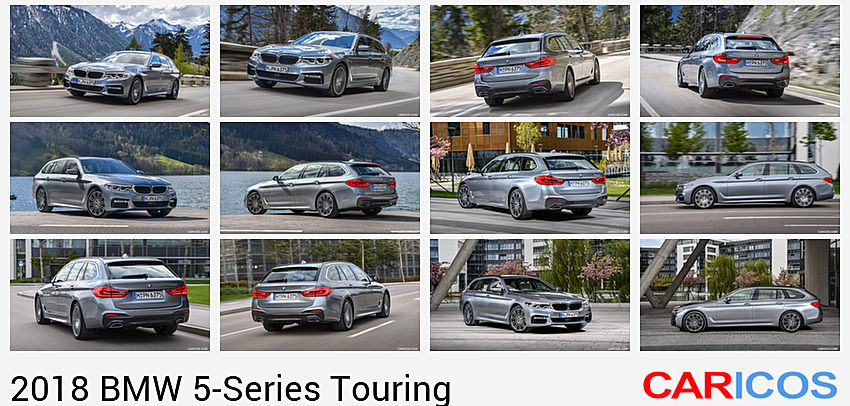

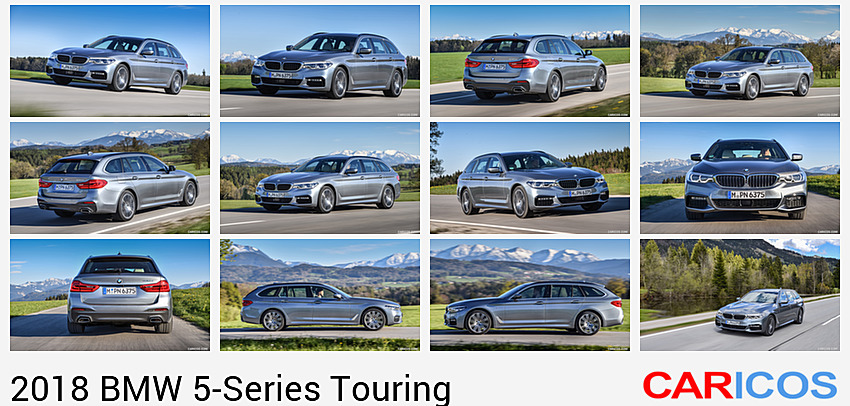

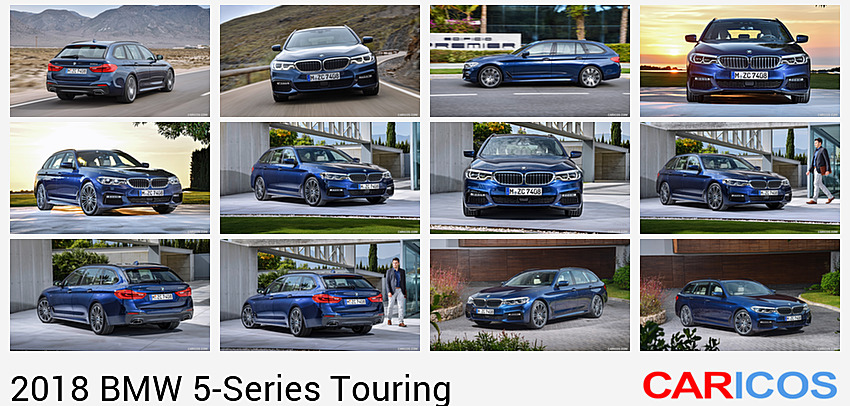

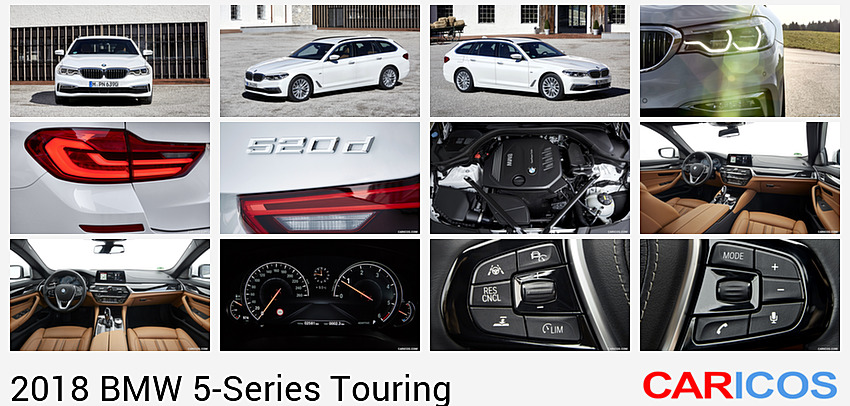

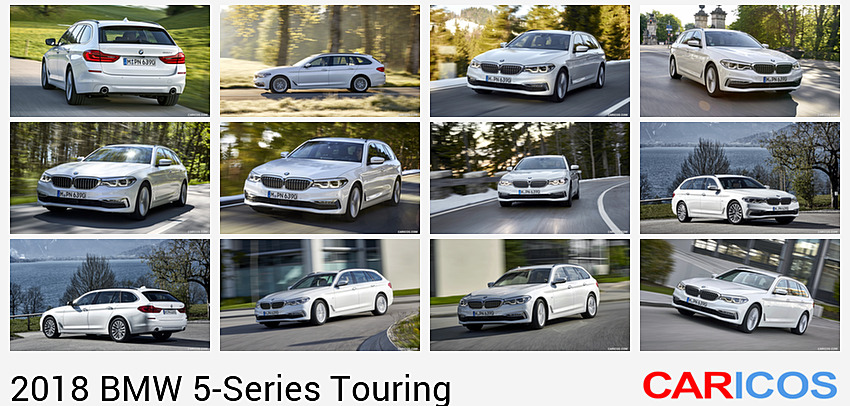

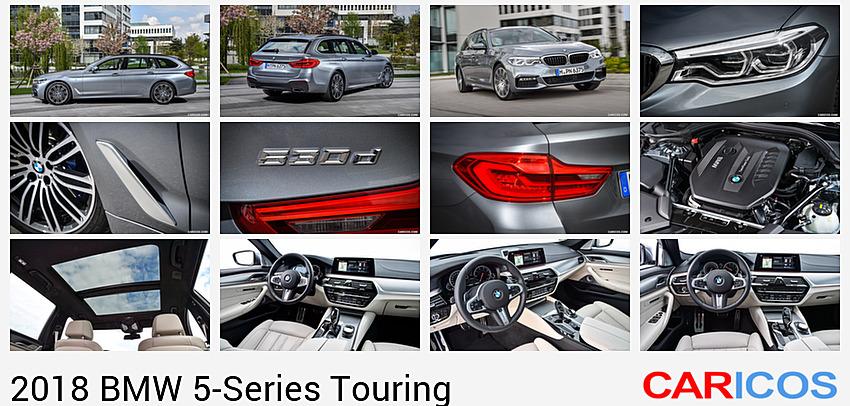

With surface contouring that creates a clearly defined athletic build and dynamically stretched lines, the exterior design of the new BMW 5 Series Touring clearly expresses the blend of sportiness and versatility for which this model is renowned. Precise contours mark out the front end of the new Touring, and the standard LED headlights extend up to the forward-surging BMW kidney grille. The flanks, meanwhile, combine the car’s distinctive geometry with harmonious proportions. Another contributor to the sporting aura exuded by the new BMW 5 Series Touring is its long roofline, flowing into heavily raked D-pillars. The rear window is framed by a roof spoiler with integrated auxiliary brake light and air deflectors at the sides. Lower down, a series of prominent horizontal lines and the L-shaped rear lights reaching deep into the car’s flanks accentuate the body’s width.
Improved spaciousness and intelligent functionality.

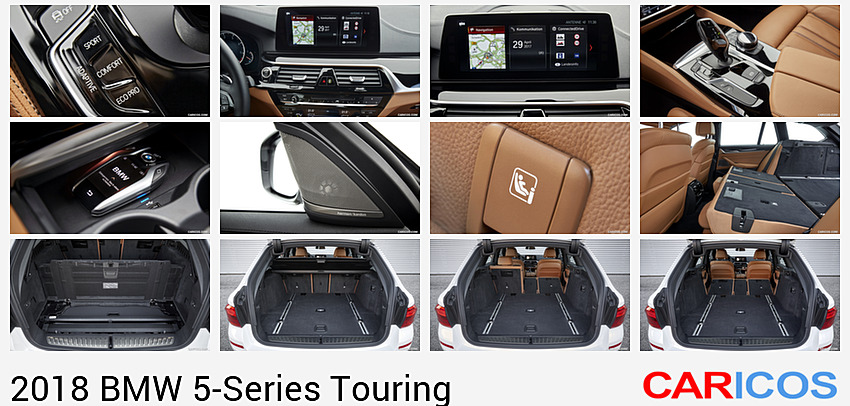

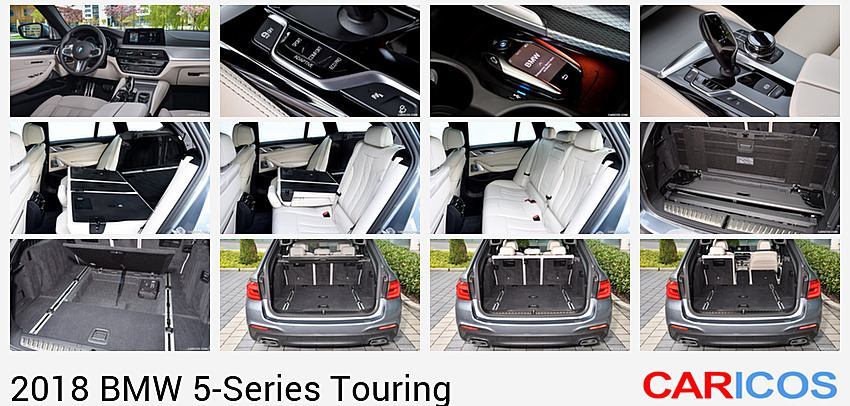

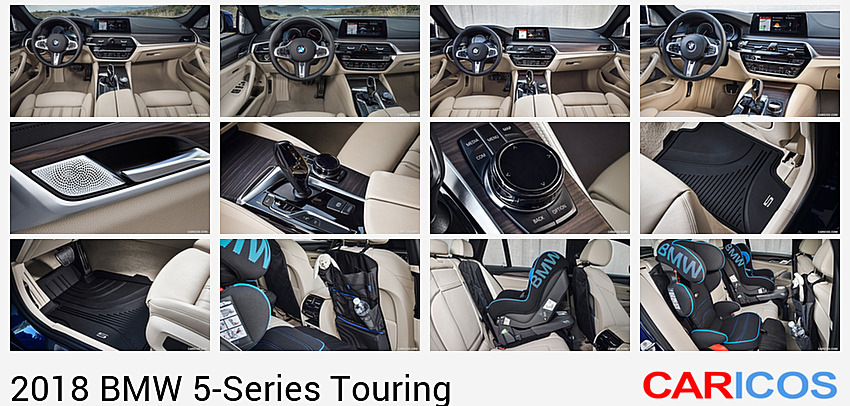

Inside the new BMW 5 Series Touring, a driver-focused cockpit design shares the stage with the premium ambience generated by a combination of contemporary elegance, precisely finished high-quality materials and a devotion to detail. The instrument panel rises up less prominently than in the outgoing 5 Series Touring, helping to create a generous feeling of space. The Control Display now comes in freestanding, flatscreen form. All seats benefit from appreciably greater head-, shoulder- and legroom, while optimised backrest contours, longer seat surfaces and extended kneeroom elevate comfort for the rear passengers. Further upgrades to the soundproofing provided by the windscreen, headliner and load compartment raise the acoustic comfort on board the new BMW 5 Series Touring to sedan levels. The increase in interior width allows up to three child seats to be fixed securely and comfortably across the rear.

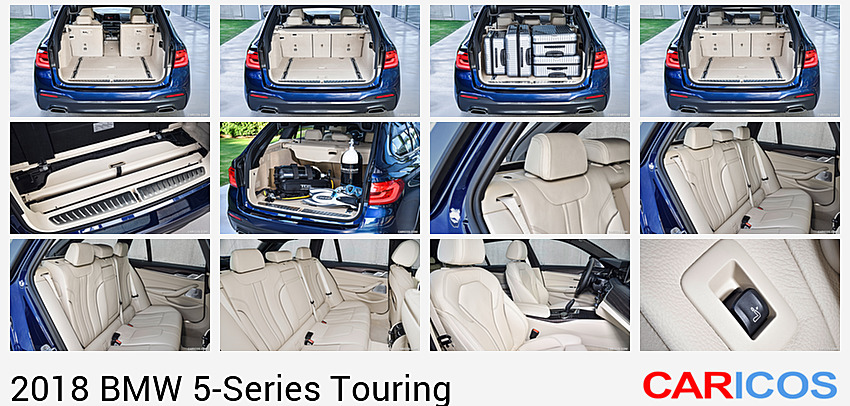

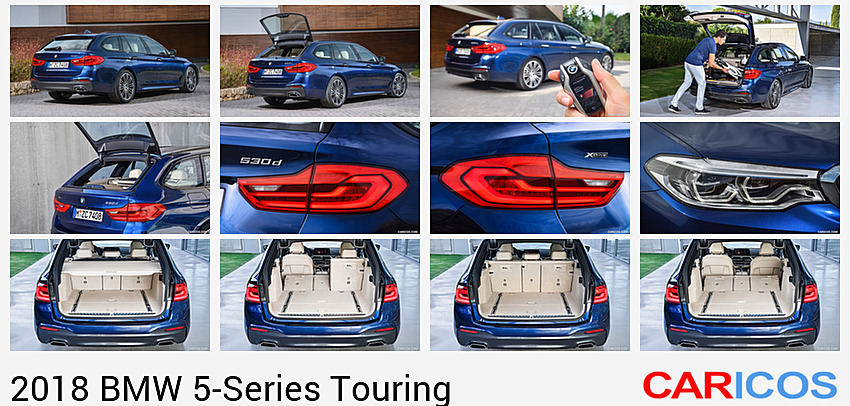

The boot capacity of the new BMW 5 Series Touring has grown to
570 – 1,700 litres and its permissible load by up to 120 kilograms, depending on the model variant (to 720 – 730 kilograms). Similarly impressive is the high degree of functionality rooted in an array of practical details, such as the 40 : 20 : 40 split/folding rear seat backrest, electric remote backrest release (operated by pressing a button in the boot), separately-opening rear window and automatic tailgate operation – which, as an option, allows hands-free opening and closing. The load compartment cover and luggage partition net are now contained in separate cartridges that can be stowed away in matching recesses underneath the load compartment floor.
Driving pleasure, just as you like it: four engines and BMW xDrive available from launch.
The engines available to customers from the market launch of the new BMW 5 Series Touring boast BMW TwinPower Turbo technology and combine enhanced performance with reduced fuel consumption and emissions. The 2.0-litre four-cylinder petrol engine under the bonnet of the new BMW 530i Touring generates maximum output of 185 kW/252 hp and peak torque of 350 Nm (258 lb-ft). The BMW 530i Touring comes as standard with an eight-speed Steptronic transmission and sprints from 0 to 100 km/h (62 mph) in 6.5 seconds. Its combined fuel consumption stands at 6.3 – 5.8 litres per 100 kilometres (44.8 – 48.7 mpg imp)* and CO2 emissions are 143 – 133 grams per kilometre*.
A 3.0-litre six-cylinder in-line petrol engine, eight-speed Steptronic transmission and intelligent all-wheel-drive system team up to whisk the new BMW 540i xDrive Touring down the driver’s road of choice. Output rising to 250 kW/340 hp and peak torque of 450 Nm (332 lb-ft) deliver acceleration of 0 to 100 km/h (62 mph) in 5.1 seconds. The BMW 540i xDrive Touring posts combined fuel consumption of 7.7 – 7.3 litres per 100 kilometres (36.7 – 38.7 mpg imp)* and CO2 emissions of 177 – 167 grams per kilometre*.
The four-cylinder engine in the new BMW 520d Touring extracts 140 kW/190 hp and peak torque of 400 Nm (295 lb-ft) from its 2.0-litre displacement. This diesel unit teams up as standard with a six-speed manual gearbox, but can also be specified with an eight-speed Steptronic transmission as an option. The BMW 520d Touring powers from 0 to 100 km/h (62 mph) in 8.0 seconds (automatic: 7.8 seconds), but the exceptional efficiency of its engine also allows it to record combined fuel consumption of 4.9 – 4.5 litres (4.7 – 4.3 litres) per 100 kilometres / 57.6 – 62.8 mpg imp (60.1 – 65.7 mpg imp)* and CO2 emissions of 129 – 119 grams (124 – 114 grams) per kilometre*.
Rounding off the line-up of engines available from launch is a 3.0-litre straight-six diesel unit producing maximum output of 195 kW/265 hp and peak torque of 620 Nm (457 lb-ft). This engine can send its power through either the rear wheels or xDrive all-wheel drive, and links up with the eight-speed Steptronic transmission. The BMW 530d Touring completes the dash from 0 to 100 km/h (62 mph) in 5.8 seconds, the BMW 530d xDrive Touring in 5.6 seconds. Combined fuel consumption is 5.1 – 4.7 l/100 km (55.4 – 60.1 mpg imp) / 5.7 – 5.3 l/100 km (49.6 – 53.3 mpg imp)* and CO2 emissions come in at 134 –124 or 149 –139 grams per kilometre*.
Operating system: extremely intuitive, more versatile than ever.
The high-resolution, up to 10.25-inch Control Display used by the iDrive operating system comes in touchscreen form in the new BMW 5 Series Touring. As before, the vehicle, navigation, communication and infotainment functions can also be operated using the Touch Controller, should the driver prefer. The new tile-look menu display helps ensure intuitive usability and minimal distraction from what is happening on the road. Lending additional variety to the options available for operating the car’s functions are the further developed voice command technology and the gesture control system now also available in the BMW 5 Series. With its 70 per cent larger projection surface, the latest-generation BMW Head-Up Display represents another step forward for the car’s display and operating concept.
Ongoing progress towards automated driving.
The new BMW 5 Series Touring is the latest model to point the way to automated driving with the help of new assistance systems and extended functionality. Contributing to the relentless progress in this area are Crossing traffic warning and Priority warning, Lane Change Assistant and Lane keeping assistant with active side collision protection, and the evasion aid. The new systems provide steering and lane control assistance from walking speed up to 210 km/h (130 mph), ensuring additional comfort and offering a helping hand in challenging driving situations. With the Active Cruise Control with Stop&Go function activated, the driver can now factor in speed restrictions detected by the Speed Limit Info system by simply pressing a button.
Personal mobility assistant and intelligent parking space searches.
The new BMW 5 Series Touring also features BMW Connected, which provides a seamless bridge between the car and its driver’s smartphone. This technology assists drivers with their personal appointment and mobility planning – both on the road and at their home or workplace. For example, navigation destinations can be sent into the car from the user’s smartphone and the ideal departure time calculated using Real Time Traffic Information. Added to which, Remote 3D View allows users to access images of the area around their car on their smartphone. And users can manage their calendar, e-mail and contact details via Microsoft Exchange. Wireless smartphone integration also enables the use of Apple CarPlay and is complemented by an inductive charging facility.
The new and comprehensive parking systems also enhance comfort. In addition to the Parking Assistant, the new BMW 5 Series Touring is now available with the Remote Control Parking function. Plus, drivers can also take advantage of the ParkNow service enabling online reservation of parking spaces and cashless payment. And the innovative On-Street Parking Information service helps users to find vacant on-street parking spaces.
Specifications
| BMW 530i Touring | |
| No of doors/seats | 5 / 5 |
| Length/width/height 1) (unladen) (mm) | 4943 / 1868 / 1498 |
| Wheelbase (mm) | 2975 |
| Track, front/rear (mm) | 1605 / 1630 |
| Ground clearance | 140 |
| Turning circle (m) | 12.05 |
| Fuel tank capacity (approx. ltr) | 68 |
| Engine oil (l) | 5.25 |
| Weight, unladen, to DIN/EU (kg) | 1640 / 1715 |
| Max load to DIN (kg) | 720 |
| Max permissible weight (kg) | 2360 |
| Max axle load, front/rear (kg) | 1065 / 1410 |
| Max trailer load, braked (12%)/unbraked (kg) | 2000 / 750 |
| Max roofload/max towbar download (kg) | 100 / 90 |
| Luggage comp capacity (l) | 570 – 1700 |
| BMW 540i xDrive Touring | |
| No of doors/seats | 5 / 5 |
| Length/width/height 1) (unladen) (mm) | 4943 / 1868 / 1498 |
| Wheelbase (mm) | 2975 |
| Track, front/rear (mm) | 1605 / 1630 |
| Ground clearance | 140 |
| Turning circle (m) | 12.22 |
| Fuel tank capacity (approx. ltr) | 68 |
| Engine oil (l) | 6.5 |
| Weight, unladen, to DIN/EU (kg) | 1765 / 1840 |
| Max load to DIN (kg) | 730 |
| Max permissible weight (kg) | 2495 |
| Max axle load, front/rear (kg) | 1185 / 1430 |
| Max trailer load, braked (12%)/unbraked (kg) | 2000 / 750 |
| Max roofload/max towbar download (kg) | 100 / 90 |
| Luggage comp capacity (l) | 570 – 1700 |
